125*R460-30 Double End bend tube SANY Concrete pump Parts used in plumbing systems

125*R460-30 Double bend tube SANY Concrete pump Parts used in plumbing systems

Product Description/Features:

Technical innovation of End Bend pipe:

• Bend radius ratio (D/d ratio) : The bend radius ratio is the ratio between the bend radius and the diameter of the pipe. A larger bend radius than usual means smoother fluid flow and lower pressure loss. Generally, a bend with a D/d ratio of 3 or greater is considered smooth, while a smaller D/d ratio may cause instability in fluid flow and energy loss.

•

• Bending direction of the bend: The end bend can have different bending directions, such as unidirectional bending, bidirectional bending and S-bending. Unidirectional bending means that the bend bends in one plane, bidirectional bending bends in two planes, and S-bending bends in multiple planes. Choosing the right bending direction depends on the layout and space constraints of the piping system.

•

• Angle measurement of bending pipe: The Angle of bending pipe is usually expressed in degrees, such as 90 degrees, 45 degrees, etc. During manufacturing and installation, Angle measuring tools, such as Angle gauges, can be used to ensure that the Angle of the bend meets the requirements. Accurate Angle measurement is essential to ensure the accuracy and reliability of the piping system.

Technical Parameters:

ABOUT COMPANY

Our company is committed to one-stop parts service to ensure perfect fit and excellent performance. This makes it easier for you to find the right part for your pump truck, saving you time and effort.

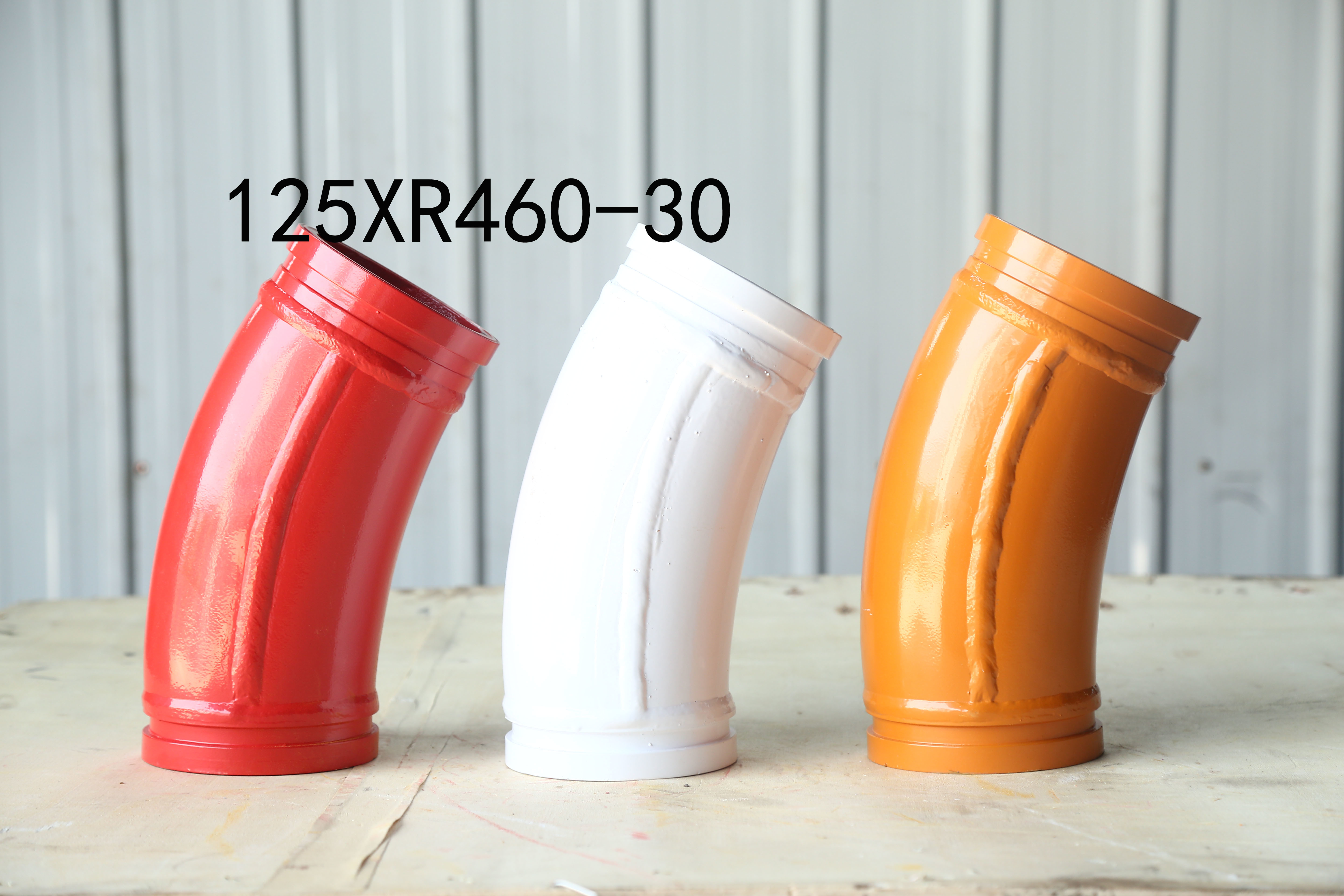

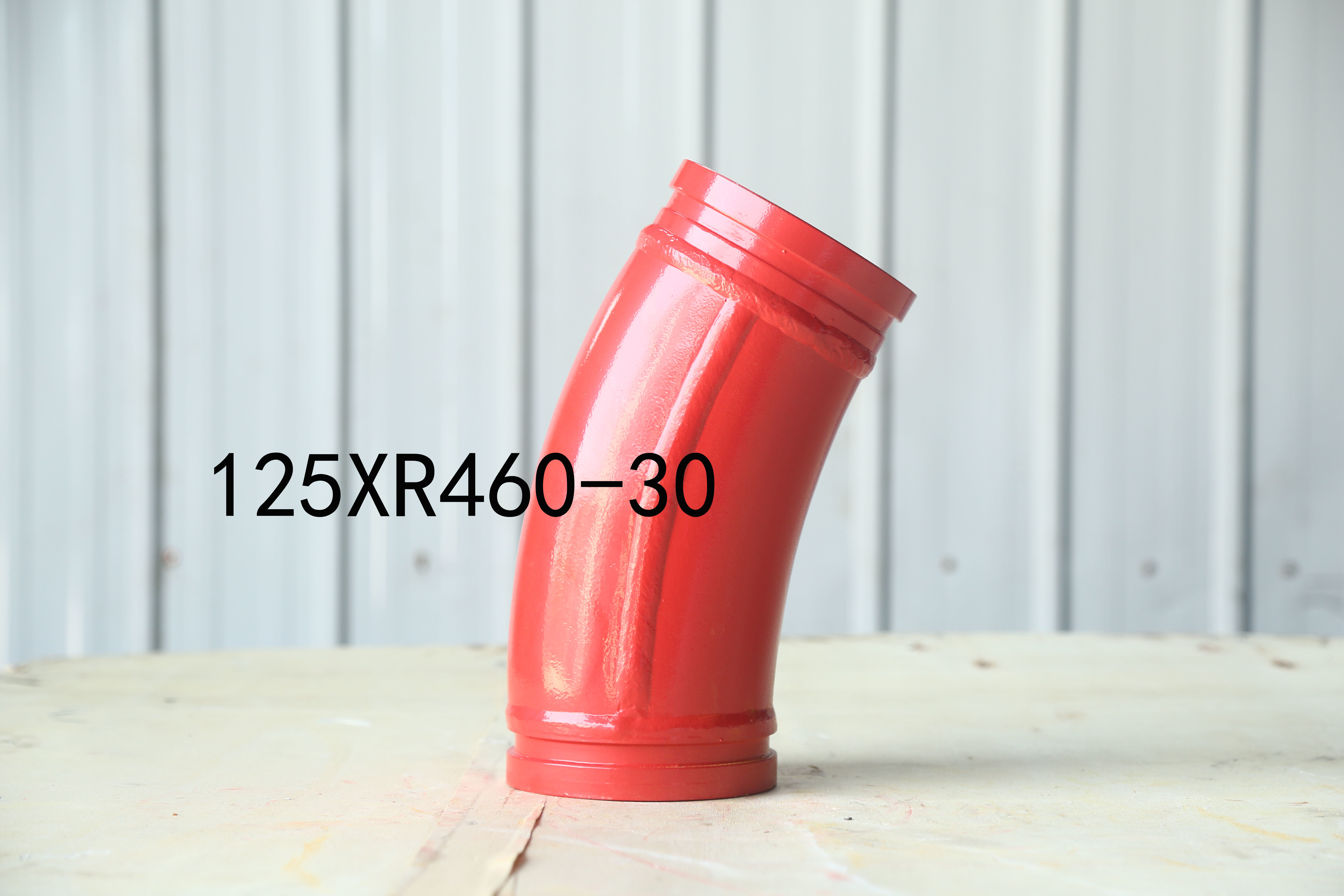

125*R460-30 Double End bend tube SANY Concrete pump Parts used in plumbing systems Images
